Description
Drop and delivery device
Drop is a simple mod that allows you to carry and drop anything you want using Phantom 3 Pro/Adv. It could be used for:
- Rescue missions
- Fishing and hunting
- For parties and fun
- Delivery
Features
- Powered from central battery. No additional power source is required
- Controlled from main remote controller. Drop works at any distance where RC control is available
- Lightweight
- Safe. Payload is fixed. It doesn’t provoke drone oscillations.
- Easy to install (no need to open the shell, no soldering)
- Can carry anything inside closed box
Package

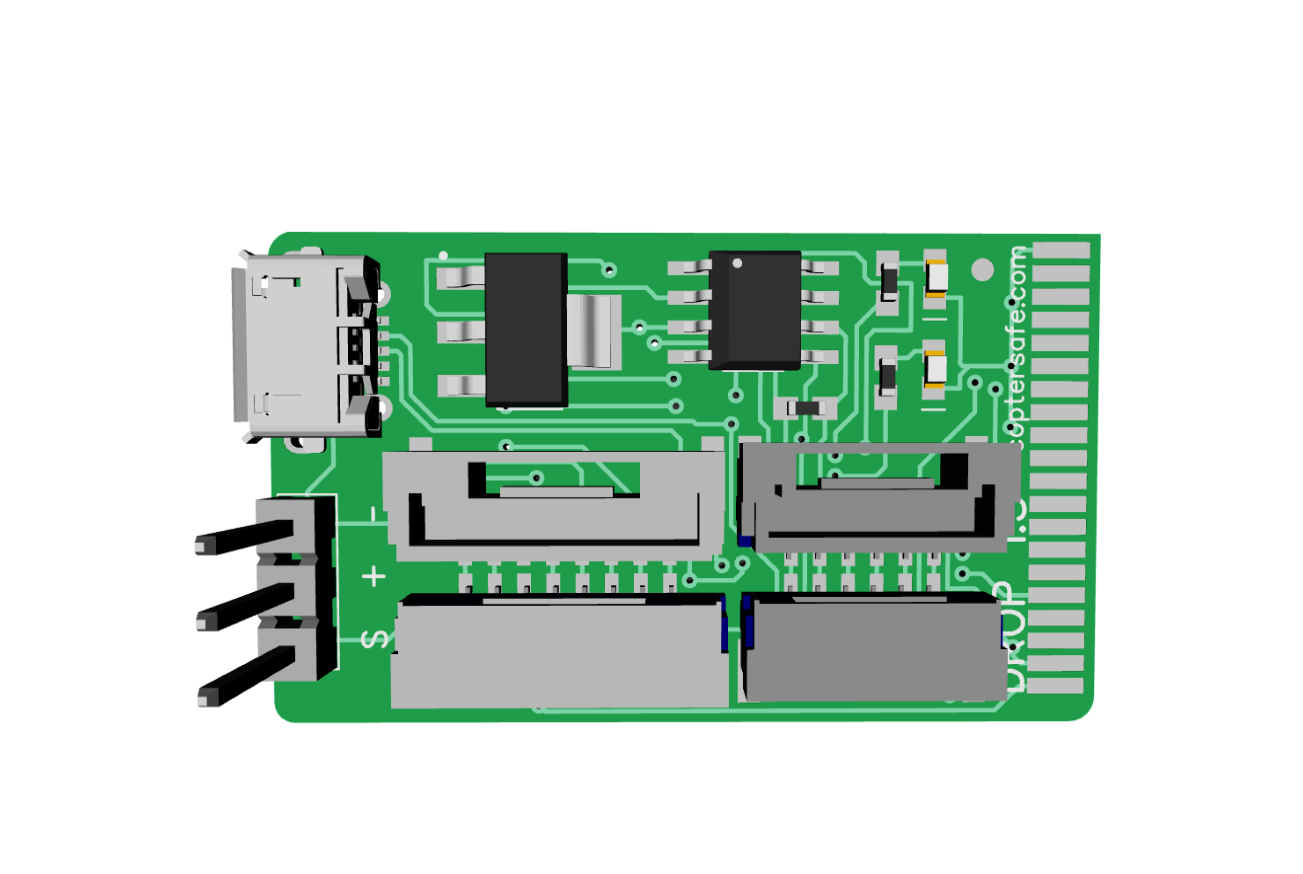

- Drop board
- Box with servo control
- Cables
How to install
Drop mod is very easy to install, no disassembly is required. Just connect several cables
- Installing Drop board
- Disconnect rubber dumpers from gimbal on side of USB connector
- Disconnect 8-pin and 6-pin cables from gimbal and connect them to border sockets on Drop board.
- Connect 6-pin and 8-pin cables from Drop board to gimbal
- Connect rubber dumpers
- Fix board with double sided tape
- Installing box
- Fix box with nylon fasteners
- Connect servo cable to Drop board
How to use
Configure one of custom buttons to switch horizontal and vertical camera position.
- Before flight place your cargo inside box and close it with servo.
- During a flight face camera down (90 degrees) and select place to drop
- Click custom button twice. Camera should go up and down. After it box will be opened.
